An Overview

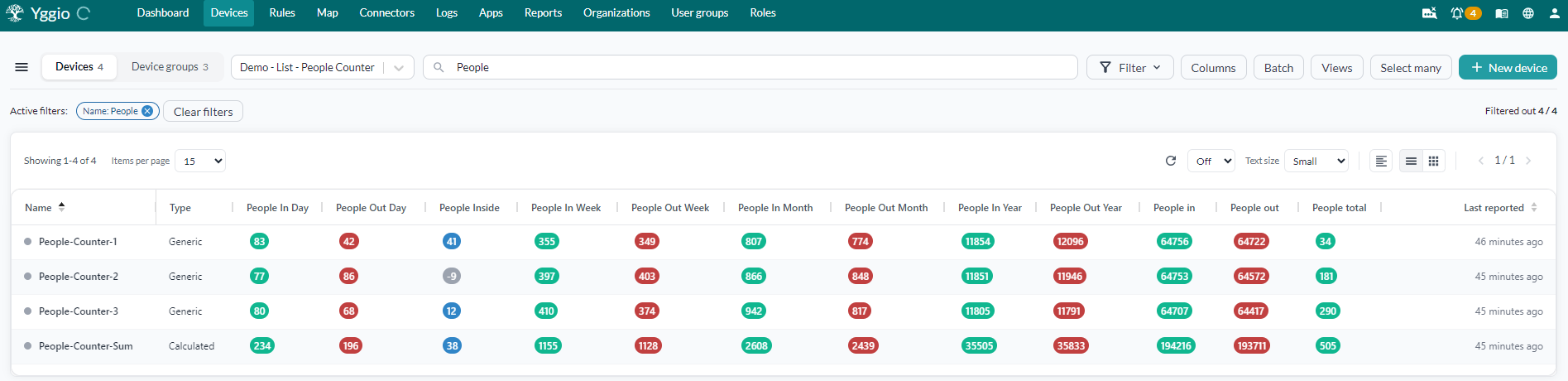

In the control panel, all your devices are displayed, allowing you to control them easily.

Control Panel Introduction

Device Views​

The device view lets you create a customized display in the Devices section and switch between multiple views with just a click. This provides clear and easy access to values like temperature and desk occupancy.

For more details, see device views.

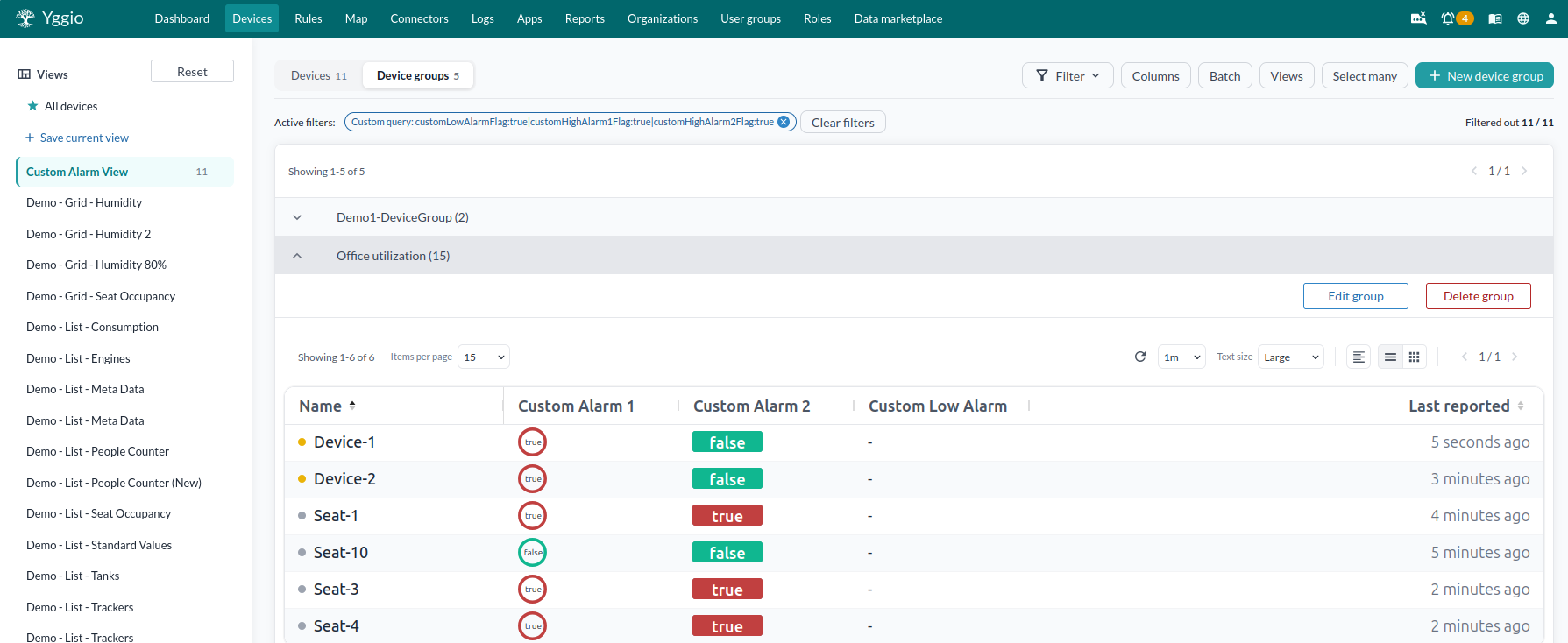

Device Groups​

Device groups allow you to create multiple groups to organize your devices.

Device Groups

For more details, see device groups.

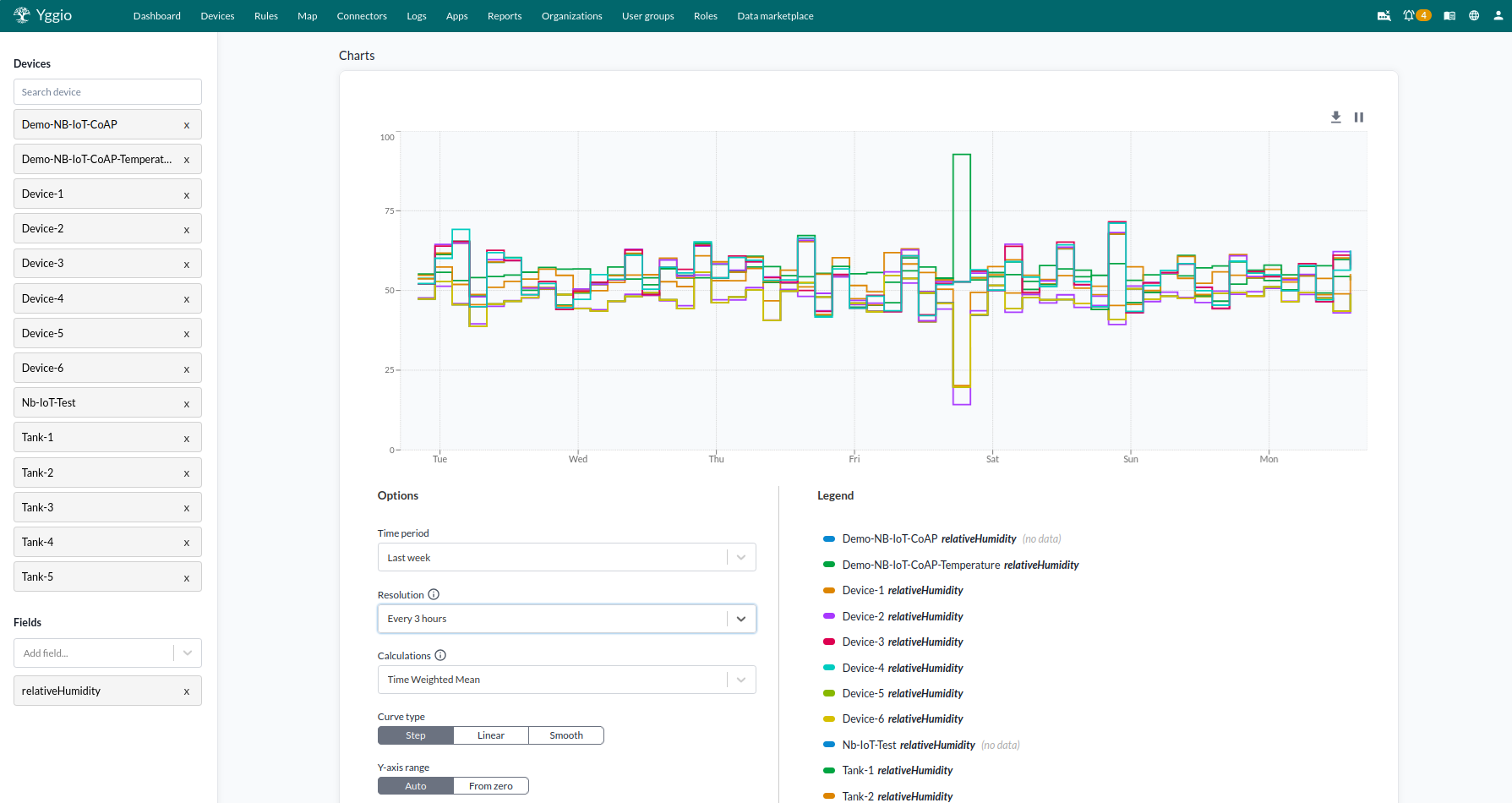

Charts​

Charts display data over time for multiple devices, incorporating one or more fields. They can represent various types of data, such as temperature or the number of people passing. Note that charts created in the device menu cannot be saved.

Device Chart

For more details, see charts.

Calculations​

Calculations refer to different calculations to apply between devices.

Adding Devices to Yggio​

For guidance on adding new devices to Yggio, see the relevant section.

Device Details​

When you press a device, a sidebar appears on the left, displaying all information about the selected device.

Device Details Introduction

For more details, see device details.

Select Many​

The Select Many feature allows you to select devices or groups for editing. You can use this to create charts, perform calculations, create channels, configure settings, delete, edit translators, set connectors, and adjust report intervals.

Batch Update​

The Batch Update function is a powerful tool that can update up to 1,000 devices simultaneously using a CSV file with valid device IDs.
