Square Comfort
Description
Square Comfort is a series of ultra-compact, advanced sensor designed for precise temperature and humidity monitoring in both indoor and sheltered outdoor settings. The standard Square Comfort dimensions are 58 x 58 x 7 mm, including a durable 750 mAh battery expected to last over 10 years using pre-defined configuration profiles.
Square Comfort is also available in a Precision version with the dimension 585815 mm with a 4.0 Ah battery delivering more than 10 years battery life even with very demanding configuration profiles.
The device features NFC for easy local management with an NFC-equipped Android phone and a WiFi receiver for geo-positioning.
Benefits & Use Cases
Square Comfort is highly beneficial for property management, offering precise climate monitoring in buildings, greenhouses, sheltered outdoor environments, and vehicles. Its compact design and accurate sensors make it ideal for maintaining optimal temperature and humidity levels, which is crucial for comfort and health in residential and commercial properties. In greenhouses, it assists in creating the perfect conditions for plant growth.
The built-in data memory and the temperature calibration features in the Square Comfort version using the ISO 17 025 certified sensor (Sensirion SHT43) is suitable for cold chain applications.
For sheltered outdoor areas and vehicles, its robust design and customization options ensure reliable performance under various conditions. Square Comfort's versatility makes it an essential tool in a wide range of environmental monitoring applications.
Mechanics
Square Comfort is an ultra-compact room comfort sensor, with dimensions of 58 x 58 x 7/15 mm, designed for very discreet mounting. It can be easily attached using adhesive or screws. The small ears intended for screw mounting are conveniently removable, either by twisting them off or using a knife. Square Comfort is equipped with a built-in, non-rechargeable battery, intended for the entire lifespan of the device, emphasizing its low-maintenance and user-friendly design.
The air inlets are membrane protected to allow air circulation while preventing water from entering the device.
Figure 1: Square Comfort S with and without screws.
Figure 2: Square Comfort Precision (15 mm)
Software
Square Comfort's advanced software architecture includes a Virtual Sensing Machine (VSM) within its firmware. This VSM operates specialized sensor applications that align with the device's sensing capabilities and specific use scenarios. Square Comfort is delivered with a general-purpose application that can be adapted to a wide range of applications by using different configuration profiles to optimize battery life according to the specific application.
Getting started
Initial Setup & Activation (OTAA)
Pre-Activation Steps:
- Prior to activating the device, ensure it is registered on the designated LoRaWAN server.
- Utilize the Dev EUI and Network Key provided with your digital delivery information for registration.
Activation:
- Following registration, briefly bring any NFC reader close to the device to initiate activation. Most mobile phones are equipped to serve as NFC readers. Just ensure that NFC is enabled in your phone settings.
- The activation process might take up to two minutes. Successful join activity will be indicated on the LoRaWAN Network Server.
- The device will continuously attempt the activation process until it successfully connects to the registered LoRaWAN network. Joining the network might take up to 24 hours once the LoRaWAN network becomes available.
Configuration:
- Tailor the device settings to fit your specific use case.
- Multiple configuration options are available. 3. Configuration support: https://sensative.com/resource-center/
Installation
When installing Square Comfort, it's recommended to position the sensor at eye level in the room to ensure the measurements are representative of the space. The location should have good air circulation.
Square Comfort can be mounted using the included adhesive for a secure and straightforward installation. If you prefer screw mounting, the device accommodates M3 screws. It's recommended to use washers to prevent damaging the screw ears. The screw ears can be easily twisted off if not using screws.
The device also offers an additional mounting option using thin, 2 mm adhesive plates. These plates allow for flexible installation, enabling the device to be secured with screws either behind or adjacent to its position. The adhesive plates come attached to a foil, as depicted in the left image below, which aids in accurately marking the drill points for screws beside the device, illustrated by the arrows indicating the relevant holes in the picture below. For installations requiring
screws behind the device, position the plates as illustrated in the right image below, and utilize ultra-low profile flat head screws, such as EJOT 905224, for a seamless fit.
To proceed with the installation, after marking and drilling the necessary holes, attach the plates using screws in the designated positions, ensuring the thick adhesive side is facing towards you. Next, peel off the protective films from the plate and device adhesives, verify the plates are correctly aligned, and then firmly press the device onto the plates for a secure attachment.

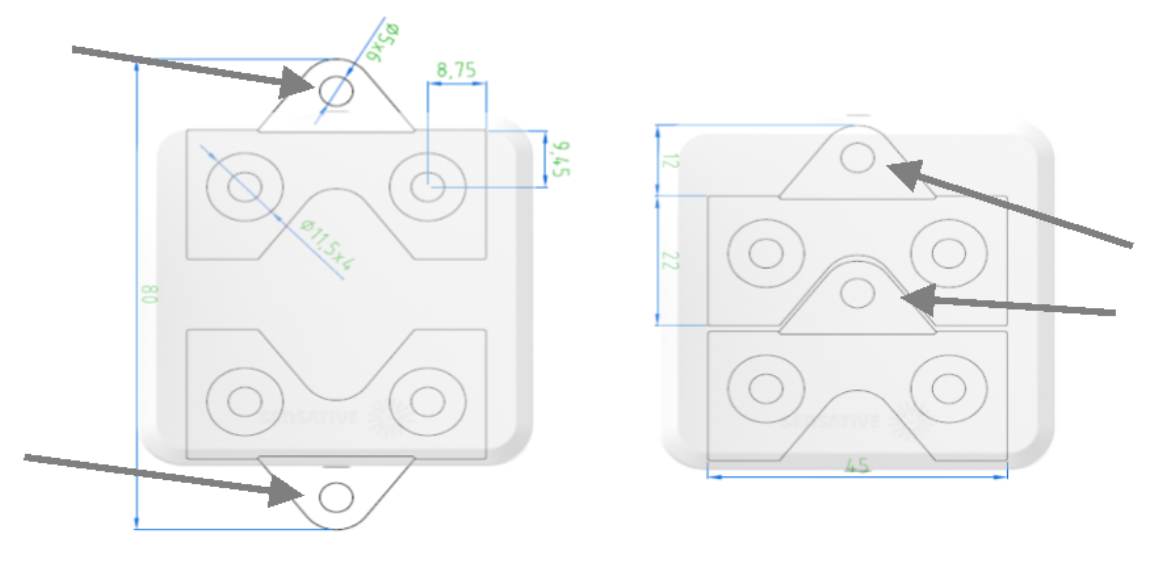

Figure 3: Adhesive plates for mounting with screws. Use the holes pointed out for adjacent or hidden screw installation.
For removal of a device mounted with adhesive, dental floss is the best tool. Simply slide the floss behind the sensor and use a sawing motion to gently cut through the adhesive, detaching the device without causing damage.
Operations
The Square Comfort S sensor operates efficiently, with an expected battery life of 10 years or more pending the configuration and network coverage. The available configuration profiles support at least 10 years battery life in a good LoRaWAN network (SF7-9).
For extended battery life or very frequent reporting we provide a Square Comfort version with 4.0 Ah battery on request.
More information
Technical information
| Specification | Description |
|---|---|
| Features | Cloud supported WIFI MAC address scanning and geo-positioning for in-door geo-positioning. Accurate temperature and humidity sensors Built-in data memory LoRaWAN connectivity NFC (Near field communication) Optional NFC app for Android phones |
| T/H sensor data Comfort Standard | Temperature/Humidity sensor (Sensirion SHT40) Temperature accuracy: +/- 0.2° C (typ) Humidity accuracy: 1.8 % rH (typ) |
| LoRaWAN specifications | Regions: * EU (863-870 MHz) * US915 (902-928 MHz) * AS923-1 (920-923 MHz) * AS923-2 (923-925 MHz) * KR (923-925 MHz) * AU (915-928 MHz) * IN (865-867 MHz) Up to +14 dBm output power Up to 10 km range LoRaWAN v1.0.4 OTAA (Over The Air Activation & Configuration) A-OTA (Application Upgrade Over The Air) Multiple LoRaWAN network keys for sensor-initiated roaming |
| Geo-positioning specifications | The device supports the following geo-positioning services. - 2.4 GHz WIFI (b/g/n) MAC address scanning - LoRa TDoA (Time Difference on Arrival) A geo-solving cloud service is required for geo-positioning. |
| Dimensions | Comfort Standard: 58 * 58 * 7 mm, 23 g Comfort Precision: 58 * 58 * 15 mm, 55 g |
| Operating conditions | -30 to + 65° C IP65 (Sheltered outdoors) |
| Recommended storage conditions | +10 to + 30° C |
| Power supply | Comfort Standard: Built-in 750 mAh Li-MnO2 battery. 3.0 V Comfort High Accuracy: Built-in 4.0 Ah Li-MnO2 battery. 3.0 V |
| Battery life | Expected more than 10 years battery life using any of Sensative pre-defined configuration profiles in good LoRaWAN network coverage (SF7-8). Battery life is affected by configuration and LoRa network quality. |
| NFC | 13.56 MHz Range: approx 2 cm. Position your NFC enabled phone directly in front of Square Comfort’s lower left corner. See figure 1. Optional Android app for local configuration and data monitoring (password protected) |
| Other | * Reporting is configurable for periodic reporting, periodic average reporting, delta reporting, and threshold-based alarm reporting and more. * Supports battery reporting. * Data memory for off-line storage of time-stamped data |
